How To Measure Thread Size Female / The first number is the size of the thread that is closer to the camera lens ( i.e.. Measure the thread diameter with an i.d./o.d. Use a caliper, measuring tape, or ruler to measure the thread diameter of a male thread or female thread. For example, a 1 mpt pipe thread has an outside diameter of 1.315 npt size thread diameter od of mpt (id of fpt will be slightly less than. Measure at the largest point. How to measure threads 1.
Determine the diameter and the length of the threaded area. Measuring sealing surface angles female connections are measured by inserting the id portion of the gauge into the connecti on on the. Find figure nearest this dimension in column 1 or 2 of chart. Place the gauge on the threads until the fit is snug. Column 1 column 2 column 3 column 4 column 5 normal engagement od fraction inch od actual pipe thread size for tight joint threads per inch

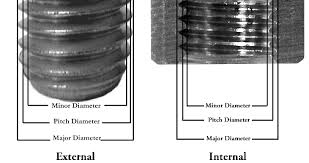

Identify The Thread Types from www.dicsaes.com Measuring sealing surface angles female connections are measured by inserting the id portion of the gauge into the connecti on on the. After measuring the diameter of your threads, determine their spacing in threads per inch. Measure top diameter of thread at b; For female thread measure the top of thread at b. How to measure threads 1. Measure threads with a caliper, measure the thread diameter. Determine the thread pitch in mm using a thread gauge or calipers (typically 1.0, 1.5, or 2.0, but other sizes do exist) determine the thread o.d (male thread) or i.d (female thread) using calipers. 2) compare measurements to chart below.
For female thread measure the top of thread at b.

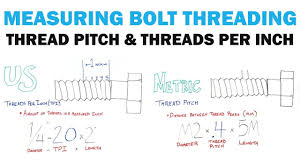

Measuring threads using the thread pitch gauge, align the gauge on the threads and make sure it is snug. Measure the inside diameter (id) of your pipe or pipe fitting (use a ruler or tape measure). Using the table below we can see that a thread measuring 1/2 is actually a 1/4 bsp thread. For female thread measure the top of thread at b. Hold the pipe in 1 hand and take a ruler or tape measure in your other hand. Inch thread sizes are specified by diameter and threads per inch. For inches, this is done by counting the number of threads in an inch. Measure any full thread corridor; Use a tape rule (or vernier gauge) to measure across the outside of the male thread. Place the gauge on the threads until the fit is snug. This short how to will explain how to measure various types of pipe threads. Find figure nearest this dimension in column 1 or 2 of chart. In some cases, threads may be worn, and the exact measurement taken may not match exactly to the thread charts.
Measure the thread diameter with an i.d./o.d. For example, a 1 mpt pipe thread has an outside diameter of 1.315 npt size thread diameter od of mpt (id of fpt will be slightly less than. Measure from the bottom of the head to the end of the threaded area in millimeters. For instance, it might be 8 millimeters. This number will help determine the thread dimension.

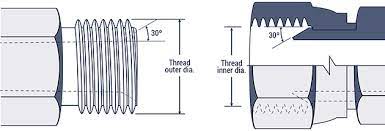

Conical Union 2 Inch Bsp Female Female A4 T316 Marine Grade Stainless Steel Parallel Threads Bspp G Thread from u-bolts-r-us.co.uk To determine the thread size: To get an accurate value, ensure that the thread pitch gauge is fitting well on the threads. How to measure threads 1. A thread's pitch size is the number of threads per inch. Measure the thread's outer diameter (od) in inches. Measure the inner diameter (id) of the female thread and the outer diameter (od) of the male thread. Measure the inside diameter (id) of your pipe or pipe fitting (use a ruler or tape measure). The sae female has straight threads and a 45 degree flare seat.
Measure threads with a caliper, measure the thread diameter.

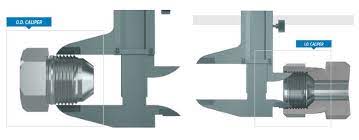

The dimension in column 3 will be your nominal pipe thread size. American connections inch size dash size nominal thread size male thread o.d. Find the actually inch size closest to what you get for a on the chart below and then to the right of that you will see the pipe size. How to measure your thread: This number will help determine the thread dimension. Let me add that using screws wouldn't work on some of the optical rings i machine measuring 2.1 id and modulus 0.7 metric or about 43 tpi. The sae female has straight threads and a 45 degree flare seat. Find the actual size closest to the measurement that you get for b and then to the right of that you will see the pipe size. Note that a thread that measures 1/2 is not a 1/2 bsp thread. To get an accurate value, ensure that the thread pitch gauge is fitting well on the threads. Id/od calipers, seat angle gauge (english and metric), thread pitch gauge a caliper is used to measure the od of male threads and the id of female threads. Then, measure the diameter (width) of the threaded area in millimeters. My question is what is the best way to measure female threads particularly in bores of one inch or so.
Match the measurement to the charts. For male threads, measure the outside diameter (o.d). Eaton weatherhead offers an angle gauge caliper and thread pitch gauge to help. Hold the pipe in 1 hand and take a ruler or tape measure in your other hand. Measure the thread diameter and subtract one quarter inch to fi nd the nominal pipe size.
Determine Pipe Thread Sizes from www.plumbingsupply.com Match the measurement to the charts. The seal is made on the 45 degree flare seat. When measuring a female pipe thread (fpt), measure the od of the pipe itself and subtract ¼ inch to find the correct pipe thread size. For instance, it might be 8 millimeters. The dimension in column 3 will be your nominal pipe thread size. Inch thread sizes are specified by diameter and threads per inch. Use a tape rule (or vernier gauge) to measure across the outside of the male thread. Then, measure the diameter (width) of the threaded area in millimeters.
Let me add that using screws wouldn't work on some of the optical rings i machine measuring 2.1 id and modulus 0.7 metric or about 43 tpi.
Note that a thread that measures 1/2 is not a 1/2 bsp thread. Measure threads with a caliper, measure the thread diameter. Determine the diameter and the length of the threaded area. Measure the thread's outer diameter (od) in inches. Od of male threads id of female threads using a thread gauge, determine the number of threads per inch. In some cases, threads may be worn, and the exact measurement taken may not match exactly to the thread charts. Eaton weatherhead offers an angle gauge caliper and thread pitch gauge to help. Id/od calipers, seat angle gauge (english and metric), thread pitch gauge a caliper is used to measure the od of male threads and the id of female threads. For metric screws, this is the length in millimeters between threads. Find the actual size closest to the measurement that you get for b and then to the right of that you will see the pipe size. What i can do for you is give you a table to compare your measured size to the corresponding npt size. Measure at the largest point. Then measure the thread diameter with the i.d./ o.d.
